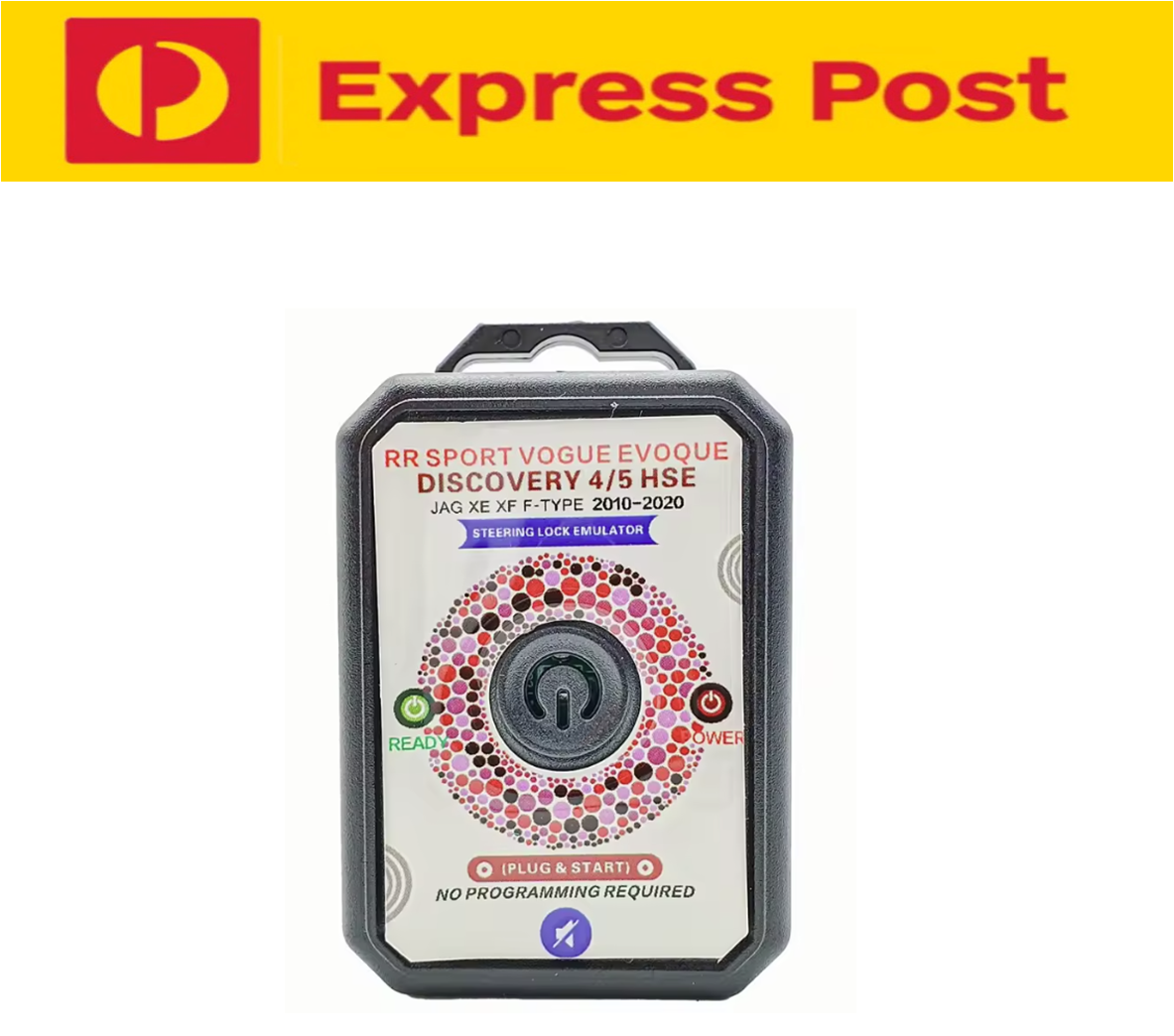

Steering Lock Emulator For Jaguar XE XF F‑Type XJ AH22‑3K772 LR028048 LR056315

Compatible with the following steering lock numbers:

AH22‑3K772‑AA, BJ32‑3K772‑AD, LR025966, LR028048, LR056315, LR072340, LR098543, LR123715

Smart Key / Push‑button start only

Black 4‑pin Connector

Not for mechanical key ignition

Compatible Models:

Jaguar

XE (X760) — 2015 – 2020

XF (X250 facelift) — 2013 – 2015

XF (X260) — 2015 – 2020

F‑Type (X152) — 2013 – 2020

XJ (X351 facelift) — 2013 – 2019

Fault codes such as B10DA, B10D7, U3000 stored in BCM

Steering Column Lock Solution:

This emulator is designed to replicate the original ESL signal, allowing you to check and verify faults related to the Steering Column Lock (SCL). If the steering lock is suspected to be faulty, connecting the emulator can help confirm whether the issue lies within the lock itself.

If the vehicle starts normally with the emulator connected, this indicates that the original steering lock is defective. Please note: if the steering lock is physically stuck, it must be removed from the vehicle before installing the emulator.

Once connected, the emulator simulates the electronic signal of the SCL without requiring extra coding.

Key Features:

Emulates the ELV/ESL steering lock module
Plug & Play – no additional programming needed
