• Camshaft FOR Holden 253 308 V8 Red Blue Black Motor Standard EPC11200
1 2

Engine Pro

Camshaft FOR Holden 253 308 V8 Red Blue Black Motor Standard EPC11200

$395.00
$395.00
Sale Sold out
Tax included. Shipping calculated at checkout.
In Stock - Same Day Shipping - Pickup Available Upon Request

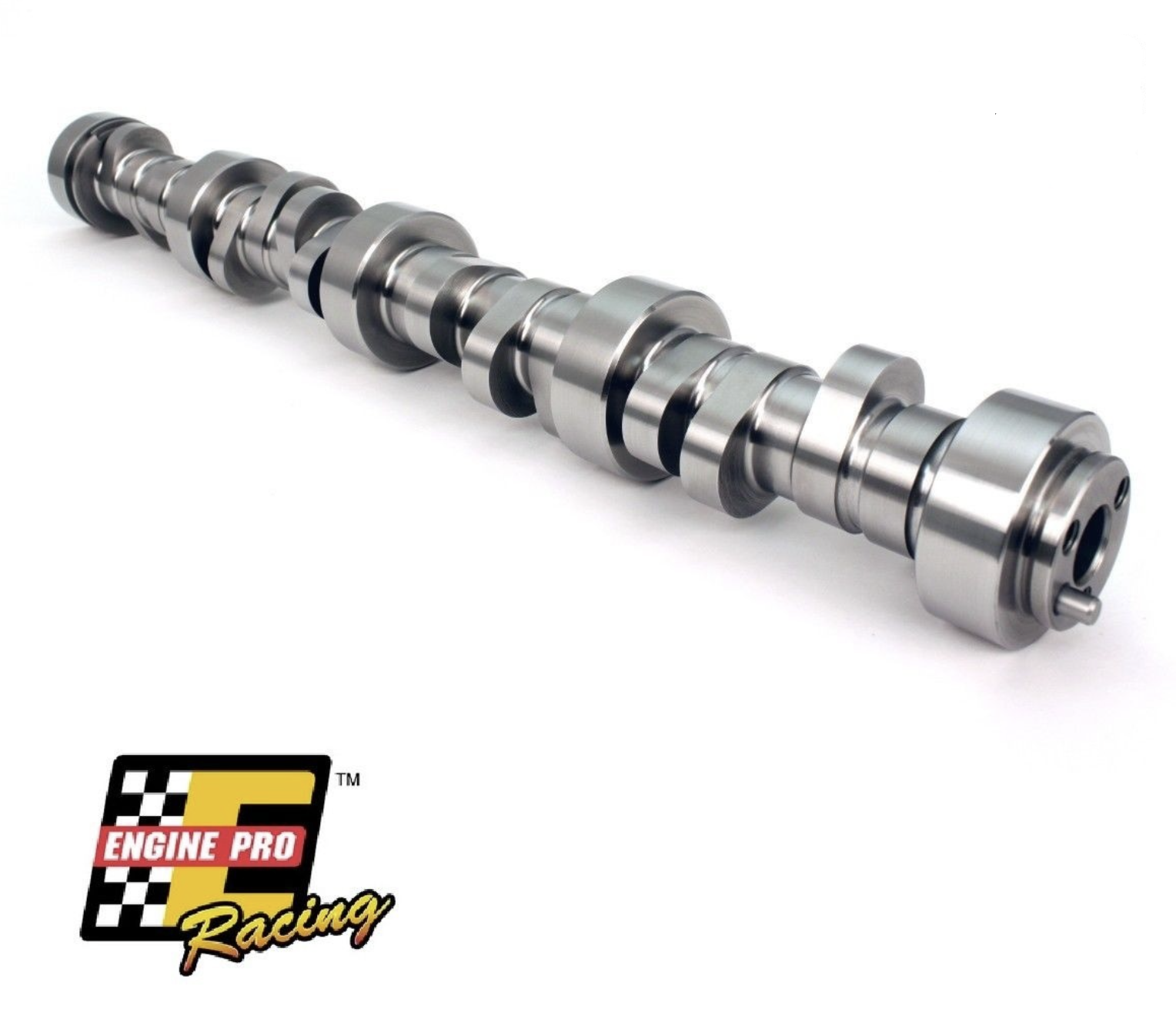

Image is for reference only, the image of the actual part may wary

Compatible with:

Make Model Year Engine
Holden Various 1969-1988 4143cc 253 cubic inch Red, Blue, Black V8 OHV 16V
      5048cc 308 cubic inch Red, Blue, Black V8 OHV 16V


STD replacement camshaft to suit hydraulic lifters.

Camshaft Lift INT/EXH - 0.245" / 0.245". Valve Lift INT/EXH 0.392" / 0.392" (1.60 Rocker Ratio).

Deg Dur @ .050" INT/EXH - 184 / 184. Deg Dur @ .006" INT/EXH - 261 / 261. Lobe Centre INT/EXH - 106 / 110. Lobe Separation - 108.

Timing @ .050" INT Open - -14 BTDC. Timing @ .050" INT Close - 18 ABDC. Timing @ .050" EXH Open - 22 BBDC. Timing @ .050" EXH Close - -18 ATDC
