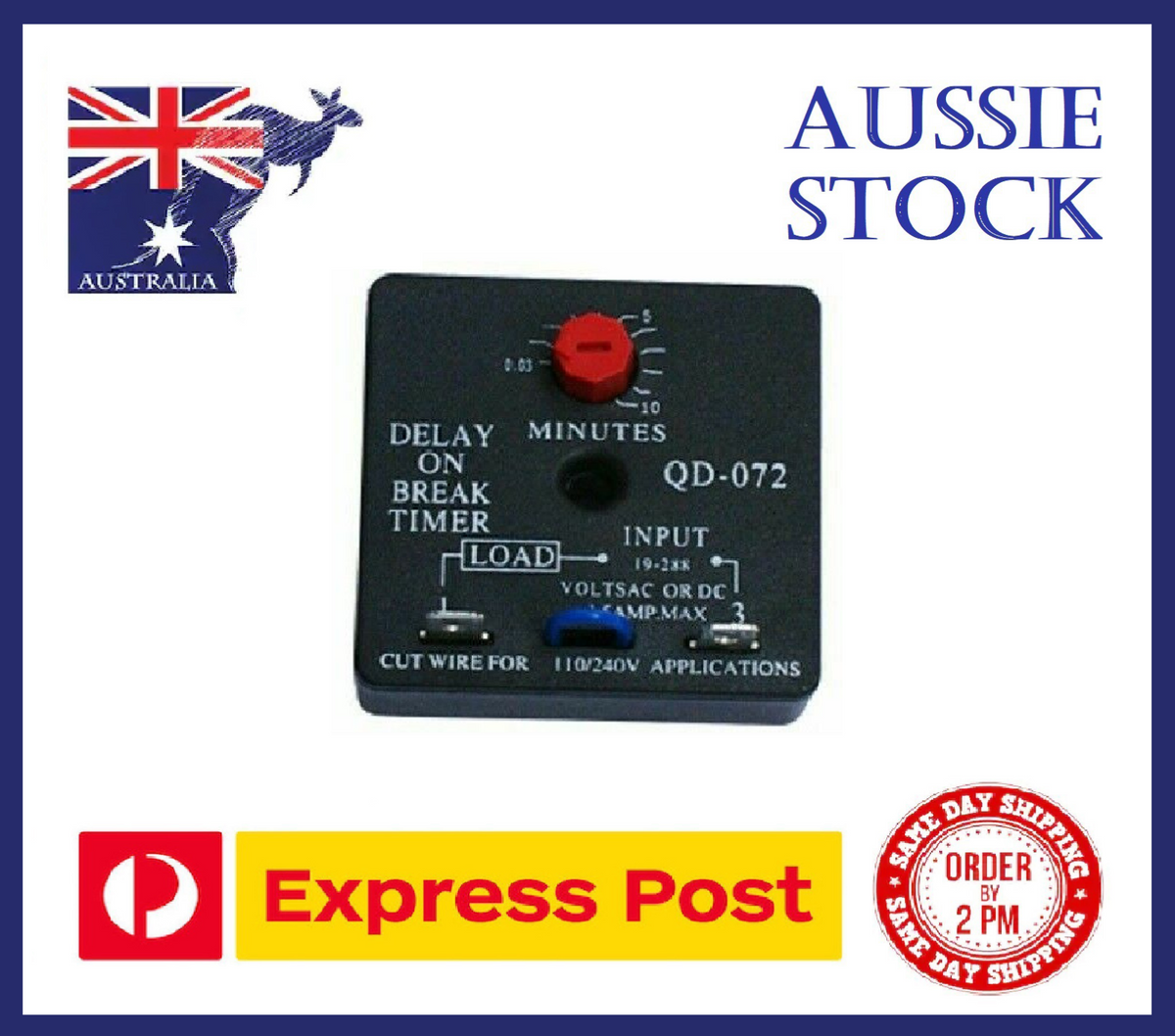

Brake Timer Delay on Brake 0.03-10 minute adjustable 19-288V 1.5AMP QD072 QD-072

Model: QD-072

Delay On Break Timer

***** Upon application of power the load is energized immediately. When the thermostat opens or on power interruption the load is de-energized and the time delay initiates. The load will be energized again after the delay time has elapsed.

- Input Line Voltage: 18-240V AC/DC

- Input Line Frequency:  50Hz/60Hz

- Output Ratings:  40mA~1.5A

- Output Ratings Inrush: 15A

- Time Delay: 0.03 ~10minutes (1.8~600sec.)

- Terminal or wire connections available

- Includes One New QD-072 Delay On Break Timer

- Replacemeant for the following items:

Diversified:     ASC-500, ASC-501, ASC-502     ASC-503, ASC-505-5
Gemline:        1C320

Mars:              32392

Robertshaw:   3310-072

Supco:            TD-73

ICM:                203

Watsco:          EAC-501-ADJ    EAC-501-ADJ-X

Installation

1.Disconnect power.

2.Connect terminals in series with the starting device as shown in the system diagram below.

3.For 24 VAC circuits, apply control as packaged. For 120/240 VAC circuits, cut the jumper wire.

4.Select the desired time delay.

5.Reapply power, check operation.
